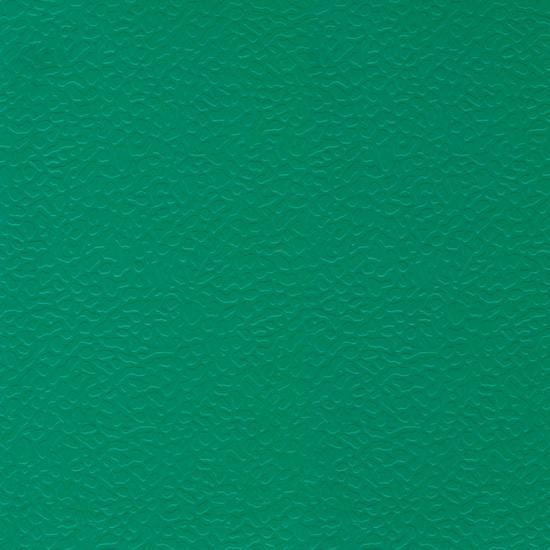

Badminton Court Flooring
ltem No.:
GYM-45101Material:
PVCSize:
2m*20mThickness:
4.0mm 4.5mm 5.0mm 6.0mm 8.0mmRecommended Thickness:
4.5mmFormat:
RollsProcess:
Compound process sports floorAbrasion Resistance Grade:
T levelBrand:
FARFLY
Technical Data |
||
|
Standard |
Test Results |
Total Thickness |
EN428 |
4.5-12mm(customisable) |
Thickness of wear layer |
EN429 |
1.2mm(customisable) |
Weight |
EN430 |
3.8/4.5/5.4kg/㎡ |
Roll width |
EN426 |
1.8m |
Roll length |
EN426 |
15*20m(customisable) |
|
||
SAFETY CRITERIA |
||
Vertical deformation |
EN14809-2005 |
0.3mm |
Wear resistance |
EN ISO5470-1-1999 |
120mg |
Indentation resistant |
EN 1516-19999 |
0.27mm |
Impact resistance |
EN 1517-19999 |
0.35mm |
Ball rebound |
EN12235 |
95% |
Frictional |
EN13036-4:2011 |
86 |
Tensile strength |
|
3.2MPa |
Elongation at break |
|
293% |
|
||
PRODUCT PERFORMANCE |
||
Polyethylene monomer |
GB 18586-2001 |
not detected(<0.5mg/kg) |
Soluble heavy metals |
GB 18586-2001 |
not detected(<0.1mg/㎡) |
Volatile matter |
GB 18586-2001 |
24g/㎡ |
Phthalates |
EN 14372-2004 |
not detected |
Fire rating |
GB 8624-2012 |
B1 |
Formaldehyde release |
EN 147-1:2004 |
not detected |
*All of our medical PVC floors have passed major international testing standards.
When choosing a floor for an indoor badminton court, factors such as durability, vibration damping, traction, maintenance costs, budget, and the special requirements of the players and the facility must be taken into account. PVC flooring is becoming increasingly popular for indoor badminton courts. This is because PVC flooring has all of the above characteristics. It can also be customized with different colors and line markings to suit the specific requirements of the court.
